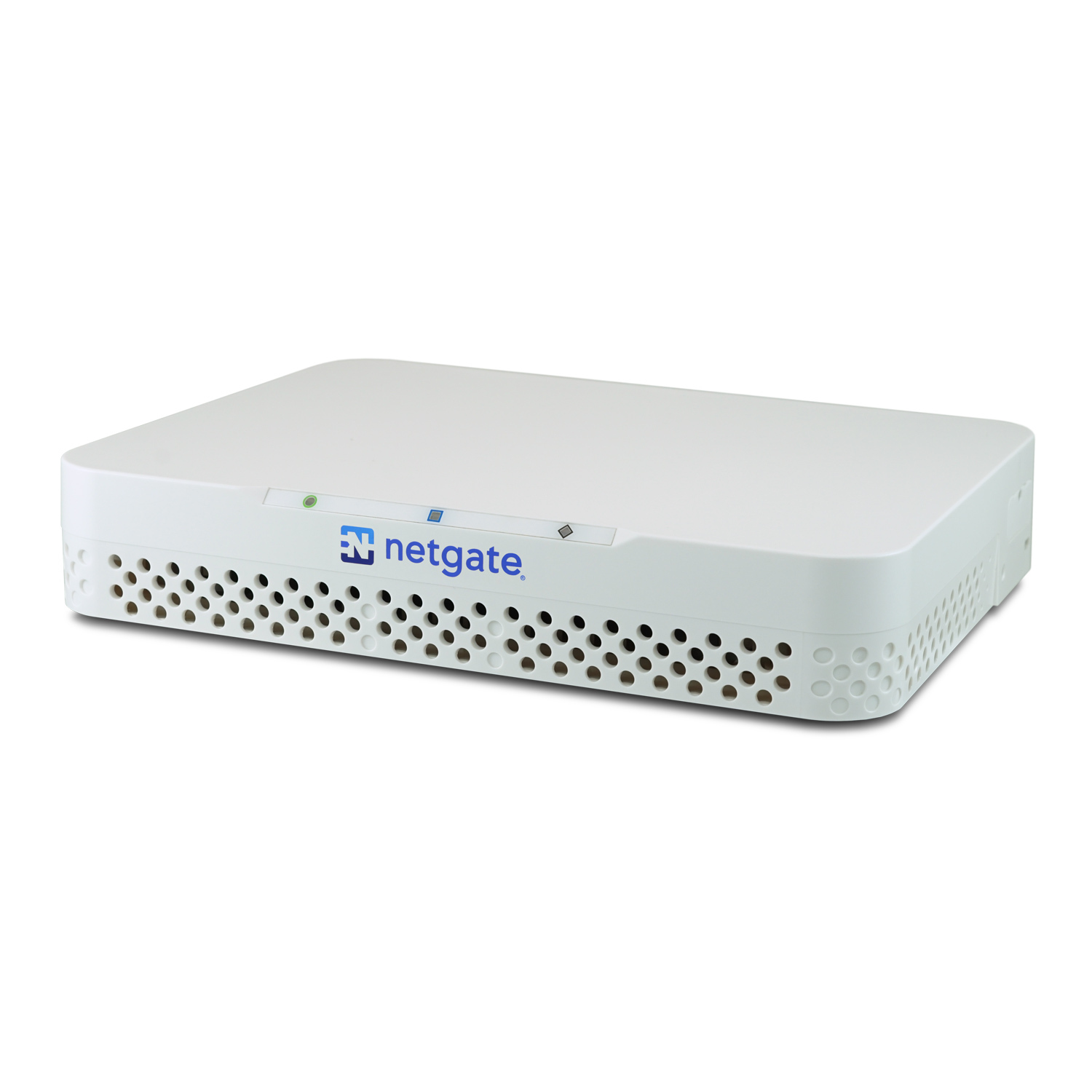

Netgate 6100 Front Horizontal Angle

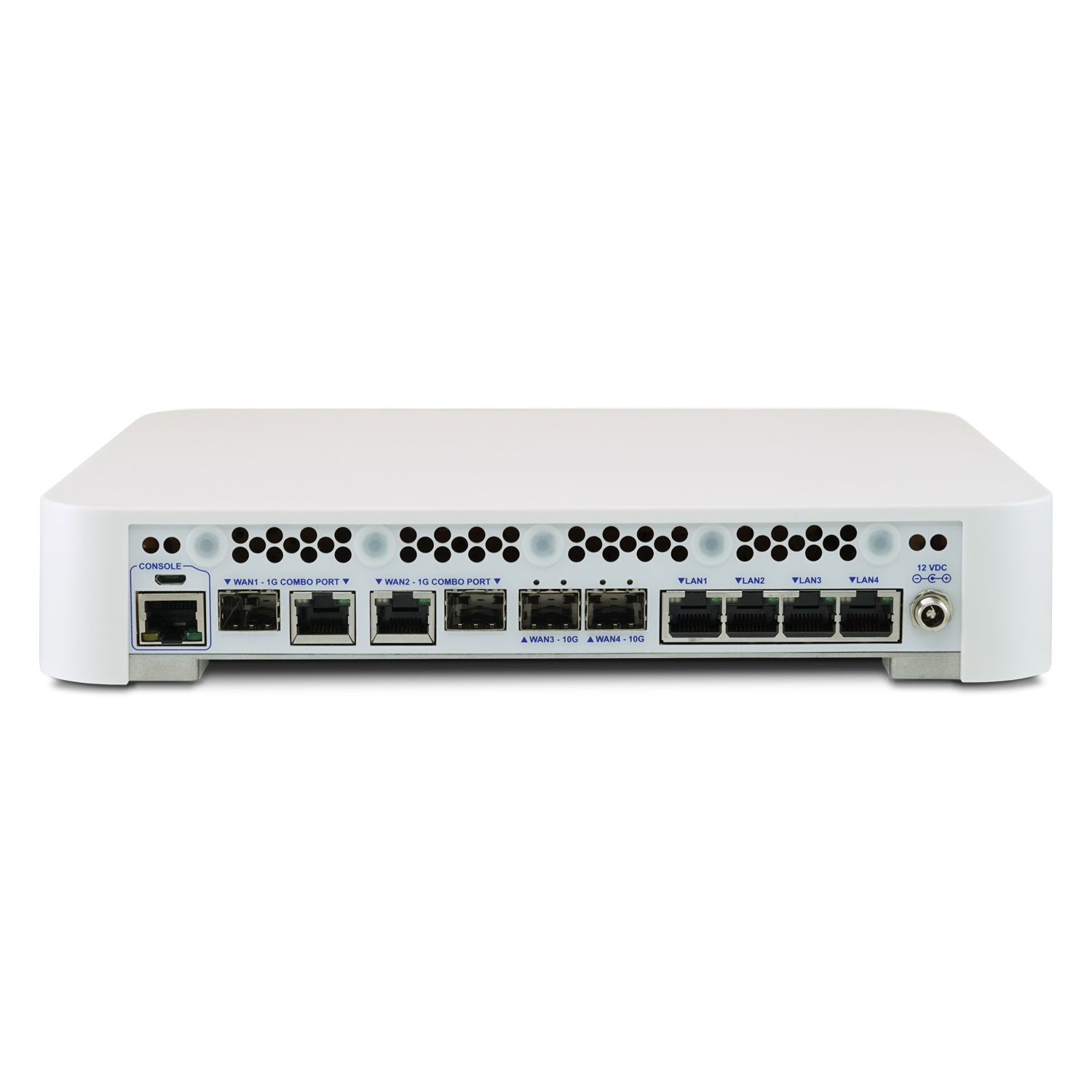

Netgate 6100 Head on Rear Angle
Netgate 6100 Bottom View

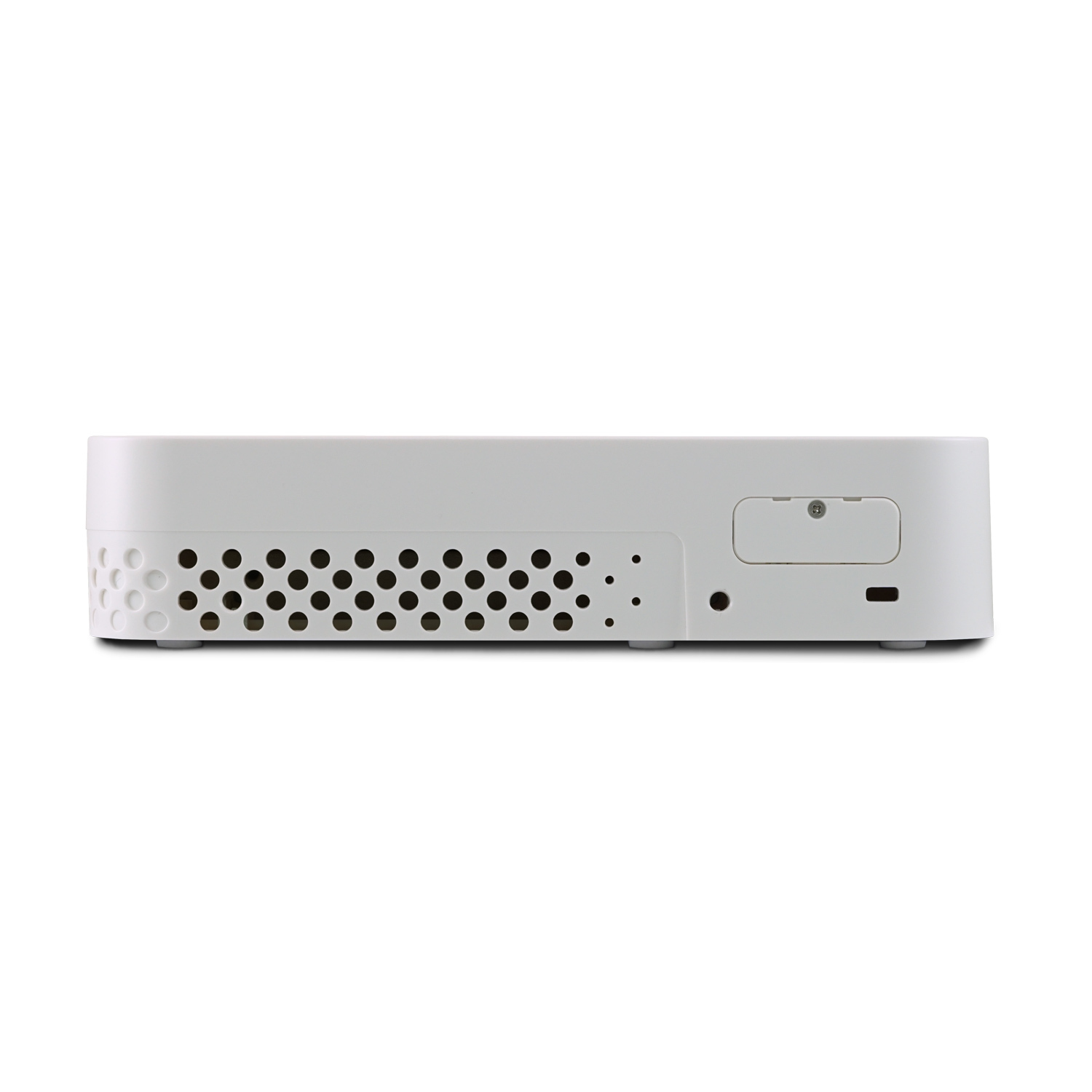

Netgate 6100 Right

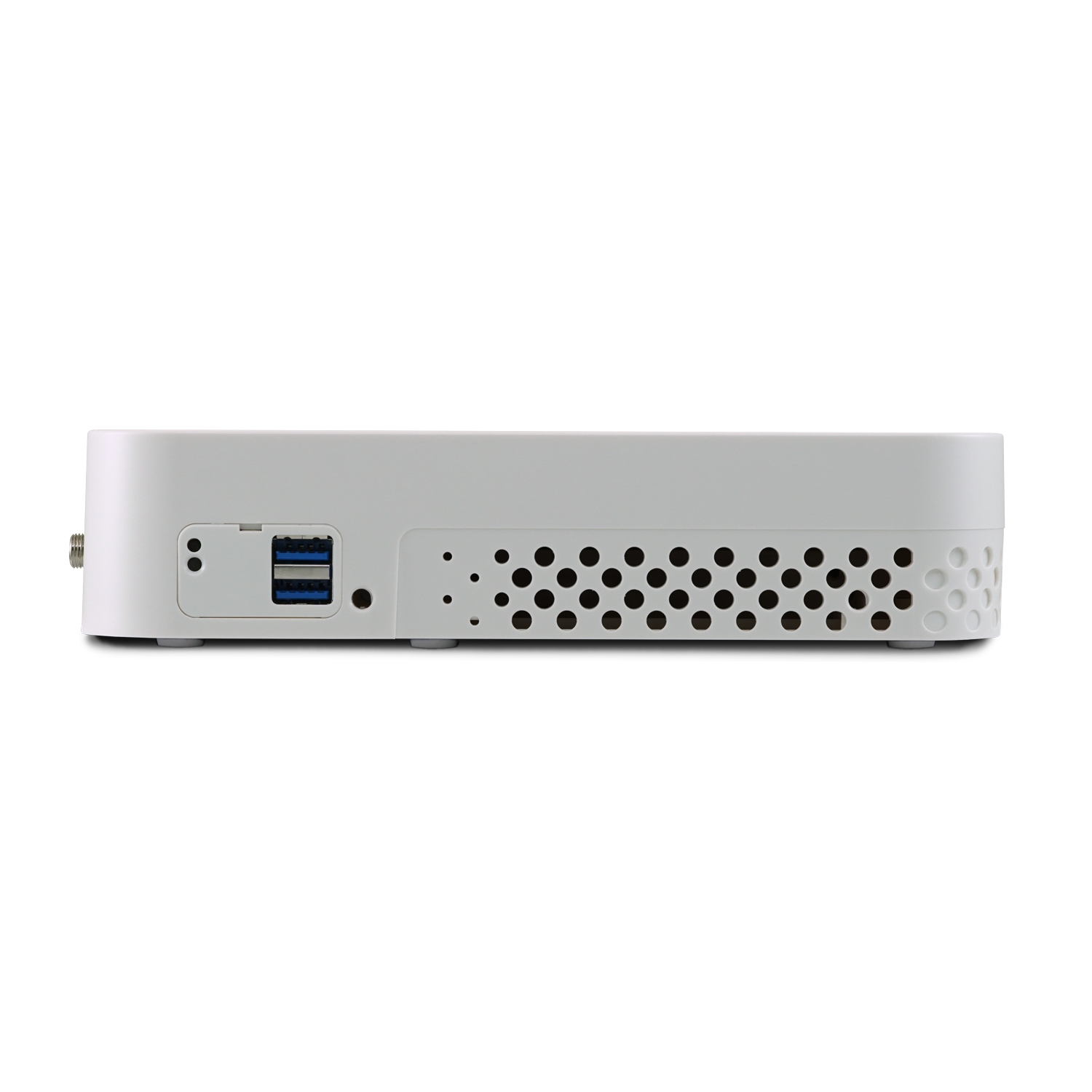

Netgate 6100 Left

Netgate 6100

Original price was: ₹130,000.00.Current price is: ₹116,212.00.

The Netgate 6100 is ideal for pro-home, small/medium businesses, or edge deployments that require flexible port configurations to support 1 to 10 Gbps WAN capabilities across RJ45, SFP, and SFP+ ports, as well as 4 discrete, unswitched 2.5 Gbps LAN ports, all in a
silent desktop form factor.

The Netgate 6100 Security Gateway, powered by pfSense® Plus, sets a new standard for flexibility and performance in its class. Delivering enterprise-grade firewall, VPN, and routing features with an intuitive GUI, it comes fully loaded—no extra licenses, subscriptions, or feature-based pricing required.

Under the hood, it’s driven by a powerful Intel C3558 Quad-Core CPU with built-in QuickAssist and AES-NI acceleration, backed by 8 GB of RAM for lightning-fast responsiveness. With over 18 Gbps of L3 routing throughput and a mix of 1, 2.5, and 10 Gbps ports, the 6100 is ready to handle demanding WAN/LAN environments with ease.

Available on backorder

Category: Tags: , , ,

Description

Netgate 6100 Security Gateway

  • Quad Core 2.2 GHz Intel Atom CPU – Delivers 18.5 Gbps routing for common iPerf3 traffic and over 9.93 Gbps of firewall
    throughput
  • 8 Independent 1G, 2.5G, and 10G Flexible WAN/LAN Configurations – Use a combination of 4 ports for maximum flexibility with 1, 2.5, and 10 Gbps WAN/LAN capabilities across RJ45, SFP, and SFP+ ports
  • Quiet operation and Low Power Draw – A compact form factor, low power draw, and silent operation allow it to run unnoticed
    when placed on a desktop, wall, or rack shelf



Netgate 6100 Specifications

CPU:
Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)

CPU Cores:
Quad Core

Physical Network:
(2) 10 Gbps SFP+ WAN ports
(2) 1 Gbps Combo WAN ports (RJ45/SFP)
(4) 2.5 Gbps RJ45 Ethernet LAN ports

Storage:
16 GB eMMC (Base configuration)
128 GB NVMe M.2 SSD (Max configuration)

Memory:
8 GB DDR4, non-ECC, single channel

Physical Expansion Card Slots:
1x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)
1x Mini-PCie Slot (Wi-Fi Only)

Console Port:
1x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system)

USB Ports:
2x USB 3.0 (USB-A female)

LED:
3x RGB LEDs, software bootloader controllable

Enclosure:
Desktop – aluminum, plastic, and steel
10 x 7.88 x 1.88 in (254 x 200 x 47.63 mm)

Mounting:
Optional wall or rack mount kit

Cooling:
Passive

Environmental:
0°C (32°F) to 40°C (104°F) – ambient

Performance

IPERF Traffic

L3 Forwarding: 18.50 Gbps

Firewall: 9.93 Gbps

IPsec VPN: 1.77 Gbps
(AES-GCM-128 with QAT)

IMIX Traffic

L3 Forwarding: 6.08 Gbps

Firewall: 2.73 Gbps

IPsec VPN: 552 Mbps
(AES-GCM-128 with QAT)

Supports opensource pfSense and comes from world’s most popular and trusted firewall, vpn and router solutions provider NetGate, sold and supported by Mistral Networks, an Authorized Channel Partner for Netgate
